CA005 4G Car GPS Tracker with Glonass SOS/Vibration Alarm Waterproof Camera GPRS for Automotive Use-B&H Photo Video GPS

GPS Tracker Main Functions:

 1. Real-Time Positioning:

   GPS Tracker Device will get the real-time position message and upload all status to the server system.

 And will display the position on the map. you can click any of the points to know the name. locating time. and acc status.speed

 GPS Time, direction and so on.

 2. Vibration alarm:

After setting the command of vibration by SMS. When it moves there will be a vibration alarm message.

 3.  Power-off alarm:

 If the power supply of GPS Tracker is cut off or GPS Tracker will send the alarm message to the server or bonded Phone number.

 4.  Remote Car Lock

 If illegal ignition alarm receives from GPS Tracker, you can remote cut off the vehicle circuit, so that to avoid being driven away.

 5.  SOS Alarm (optional)

 Users can press the SOS button on GPS Tracker under emergency situations. GPS Tracker will send alarm message to manage system and

Call police simultaneously.

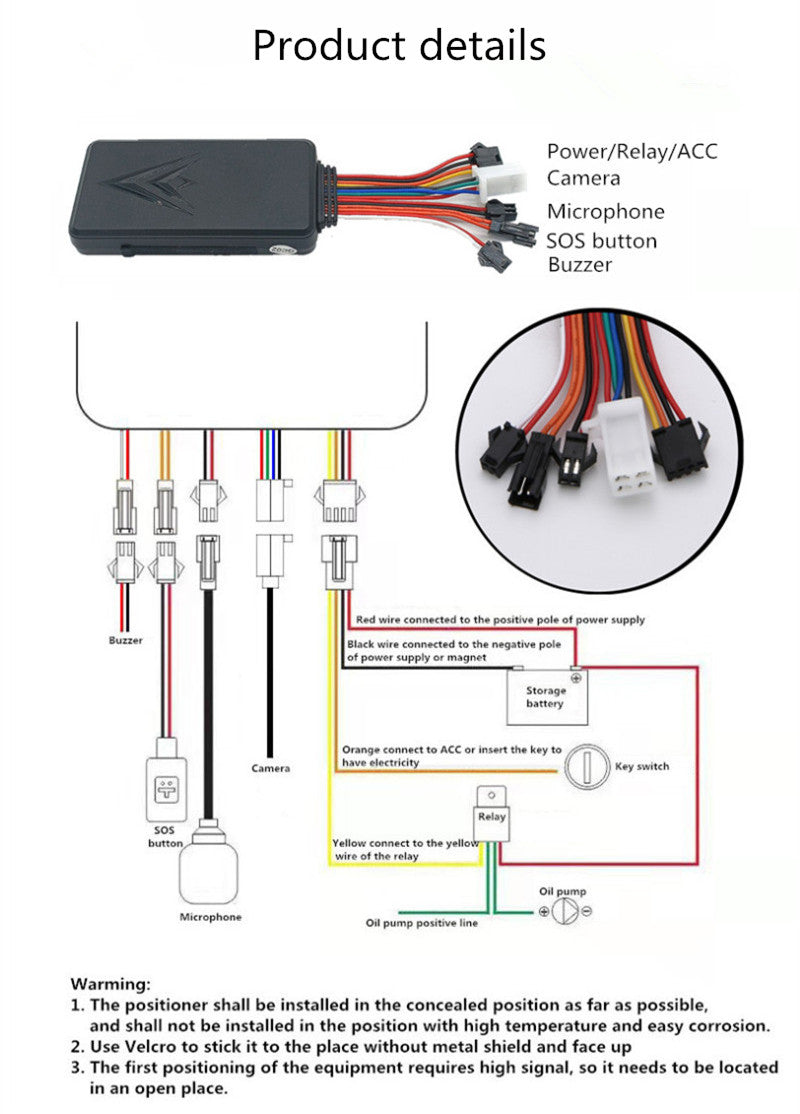

Terminal connection:

 male switch, Female switch

Red(positive) Black (Negative)

1. red wire connect positive(+),black wire connect negative(-)

2. power input connector to power positive and negative connectors( make sure connect the right connector)

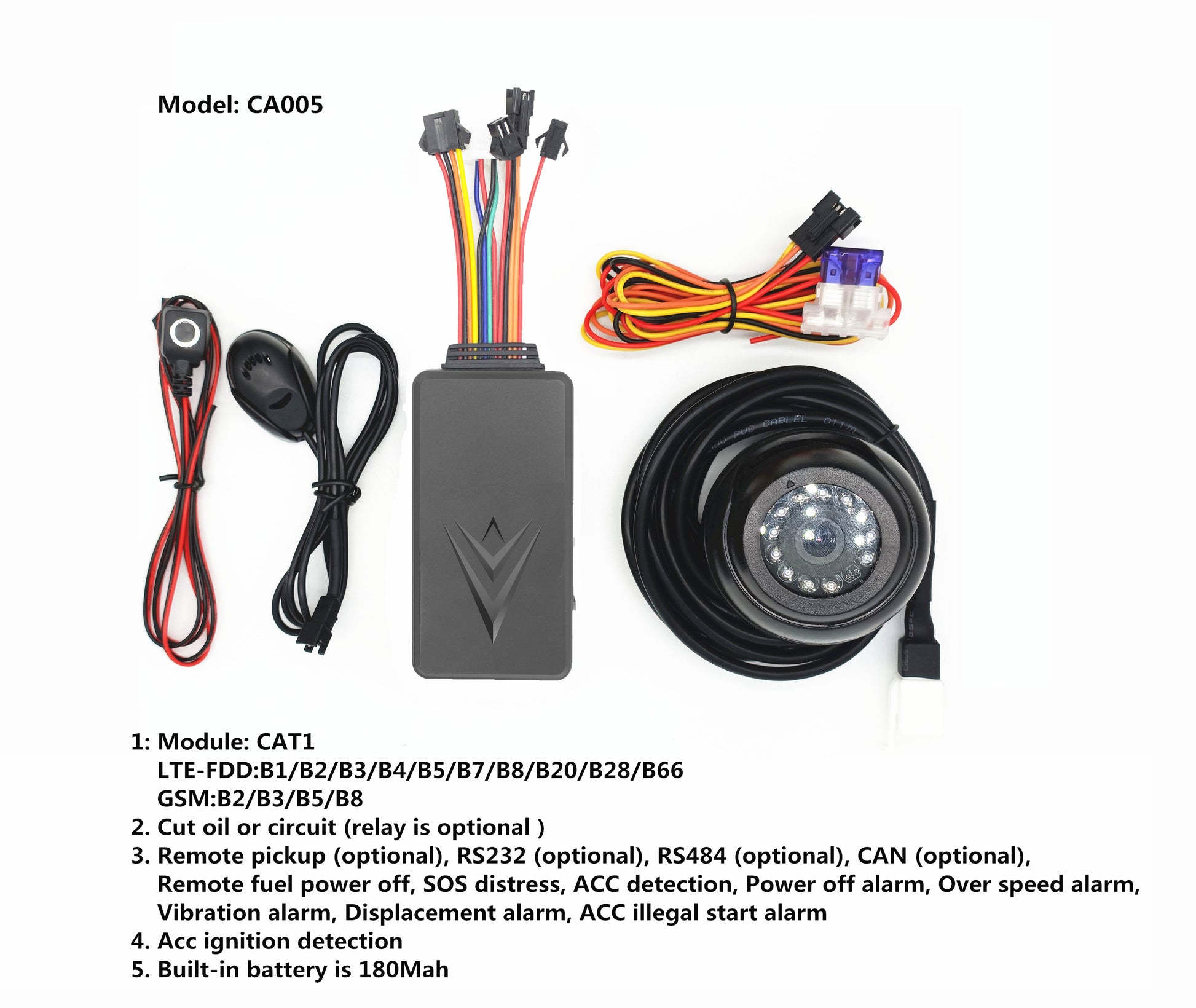

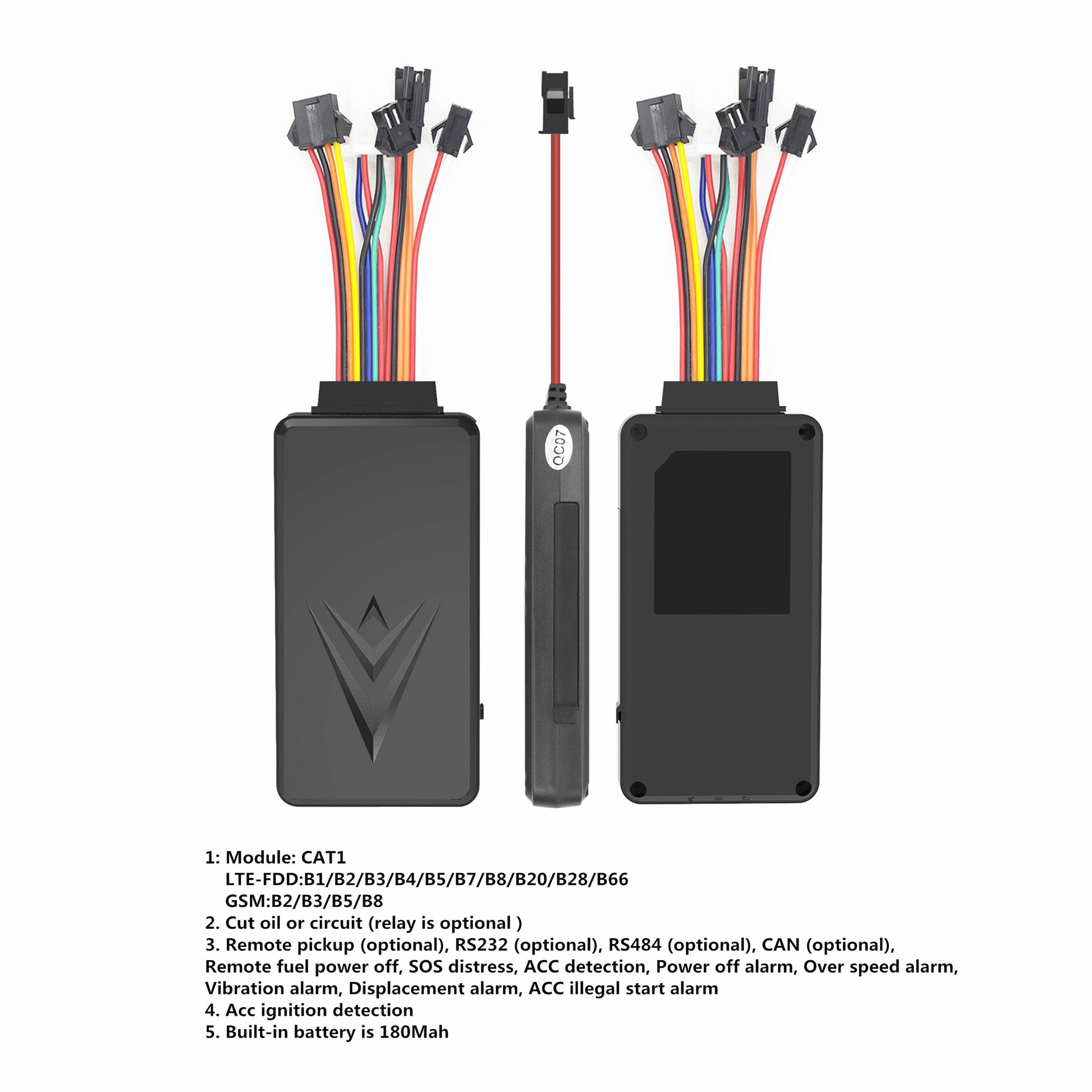

1. Quad-band,GSM frequencies 850/900/1800/1900MHz
2. MTK6261 GPRS model , MTK GPS model
3. sleep model and shock model
4. Compact size, easy for hiding
5. Low energy consumption
6. Cut oil or circuit (relay is optional )
7. Over speed alarm ,moving alarm, Vibration alarm ,power cut off
alarm
8. Acc ignition detection
9. SOS alarm and Microphone monitor the sound (optional)
10. built-in battery is 300Mah

Preparation Before Installation

3.1.1 Open the box, check is the equipment correct, are accessories complete, otherwise please contact your dealer;

3.1.2 SIM card selection, the terminal needs to insert a WCDMA/GSM SIM card, GSM card Unicom mobile or optionally (GSM networks worldwide),WCDMA Unicom 3G.

3.1.3 SIM card installation, open the terminal device, take off the metal cover SIM card slot, SIM card chip insert into the slot, covered with a metal slot cover.

Note: (1) Before installing or removing the SIM card, first turn off the device power;

(2) Terminal SIM card need to open GPRS function;

(3) Terminal SIM card need to open the Caller ID function (depending on customers prefer or not);

(4) If your SIM card needs to enter SIM PIN, please consult your phone's user manual to turn off SIM PIN;

(5) Make sure that the SIM card has charges;

（6）The camera needs to be purchased separately
